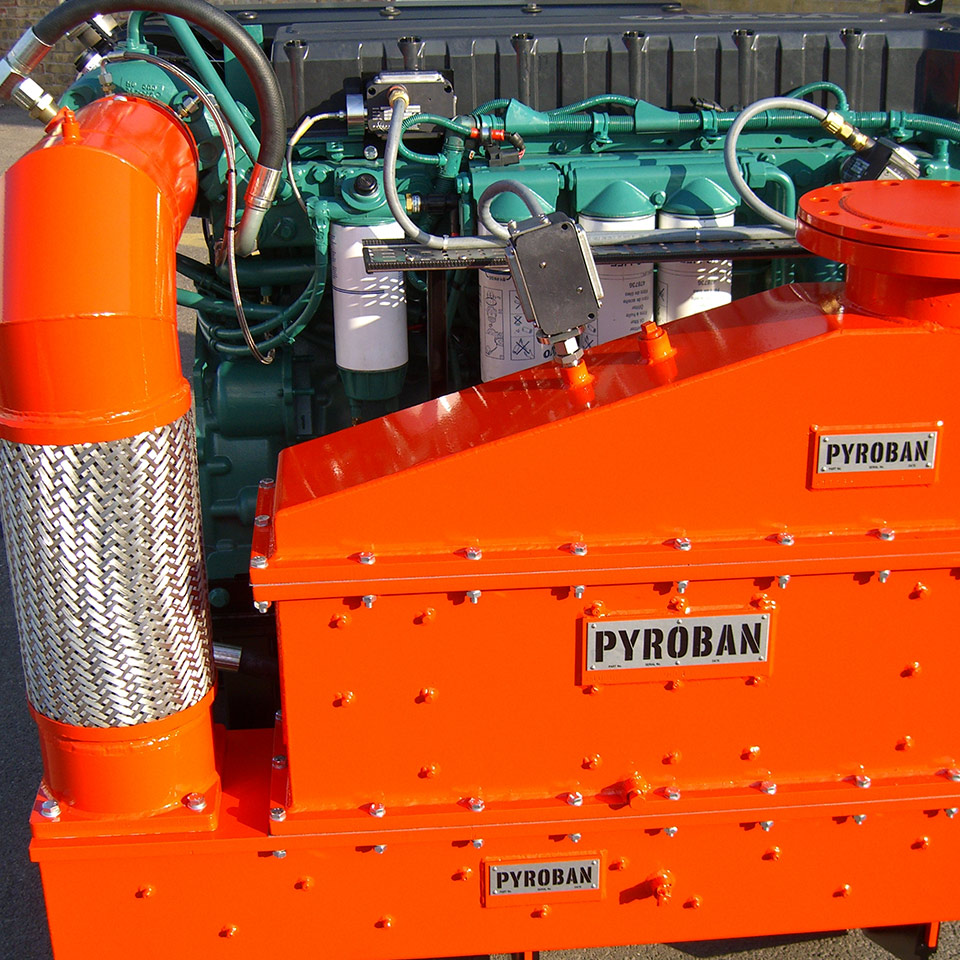

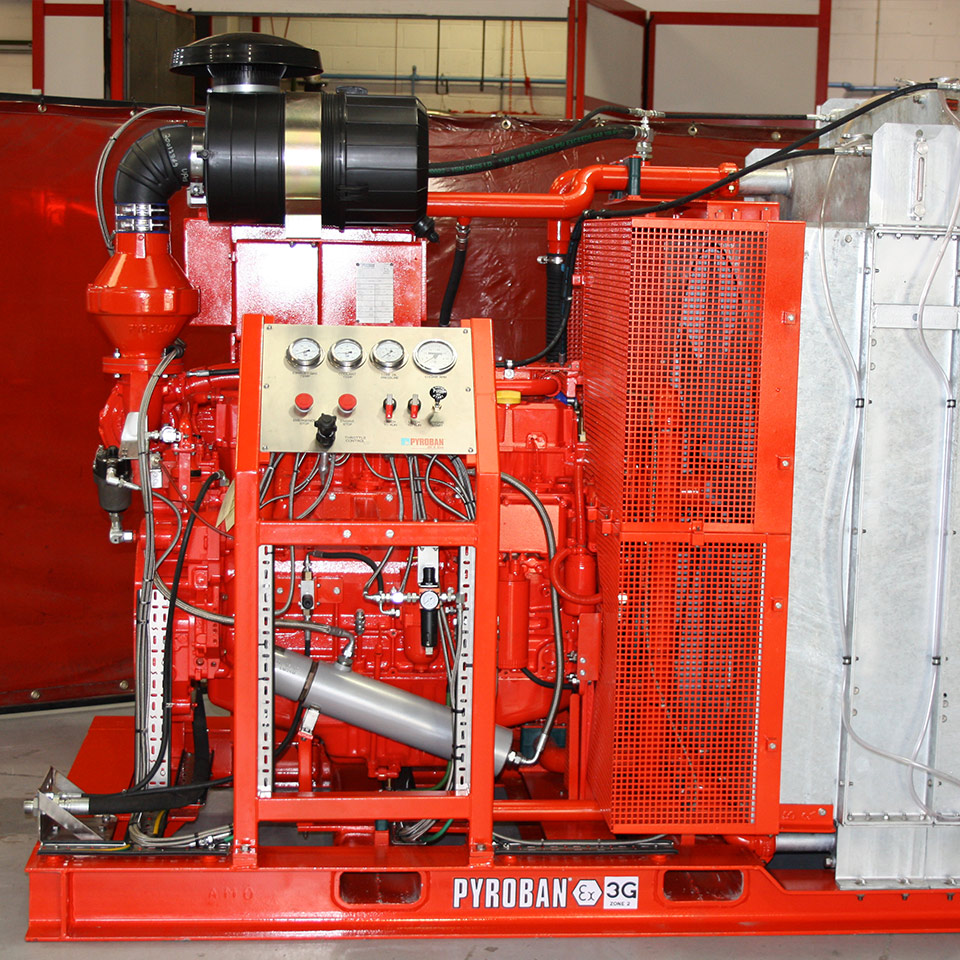

Volvo Explosion Protection Engine Kits (ATEX)
The Volvo Pyroban kits were developed to give an alternative to the popular 2 cycle DDC engines and they proved to be reliable and well matched to the hardy Volvo engine. Whilst not actively developing further Volvo solutions we can continue to support the D5, D7 and D12 engines. The systems are popular with fabric maintenance applications, cranes, and HPU’s The D12 have been successfully utilised in Nitrogen Pumping and single pump skid applications.
Pyroban solutions are designed for reliable and efficient performance in harsh, offshore environments and eliminate the ignition risk. Certification to ATEX 2014/34/EU with all flame non-transmission testing (FNTT) has been completed at our UK facility in strict accordance with industry standards.
Optimise your integration project
Pyroban kits are provided with component level certification to enable the integrator to complete the certification and test processing accordance with regional legislation and demands. Kits can be enhanced with control systems, electrical apparatus and items from our component range of accessories to suit the demands of the project. World-wide installation assistance and thermal imaging is also available and full training can be provided.
Volvo ‘Zone 2’ engine kits available for:
D7 | D12
Typical explosion protection kits include:
Typical explosion protection kits include:- Air inlet shut-off Valve
- Air inlet flame arrestor
- Water-cooled Turbocharger & Exhaust Manifold
- Exhaust Gas Heat Exchanger
- Thermal control & treatment
- Exhaust flame arrestor
- Certified spark arrestor
Additional components are added according to the application. See control systems and accessories tab.
Specification
The typical Pyroban explosion protection kit is suitable for use in hazardous areas where explosive gases occur (ATEX directive 2014/34/EU).
When properly installed, the kit provides protection to:
- Equipment Group: II
- Category: 3G
- Gas Group: IIA
- Temperature Class: T3
Conformance to the Temperature Class is dependent on ambient operating temperatures so the installed kit must be tested in a safe operating zone before use in a hazardous area.
For ambient operating temperatures above 45°C consult your customer services representative.
ATEX-designed and tested exhaust system, compliant to EN 1834-1
Consult specific engine documentation for full details of what is included.
MANUALS
CERTIFICATES
DATA SHEETS
- Volvo D7 explosion protection engine kit
- Volvo D12 explosion protection engine kit
Support through the lifecycle
We understand that our customers need maximum up time and that the harsh locations they operate in may mean special training or certification is required. We Support our customers throughout the lifecycle of the equipment with a highly experienced and qualified team of Service technicians.
Control systems and accessories
Pyroban provides a range of explosion protection accessories and safety control systems.
